Permanent Magnet Brushless Motors - BL62

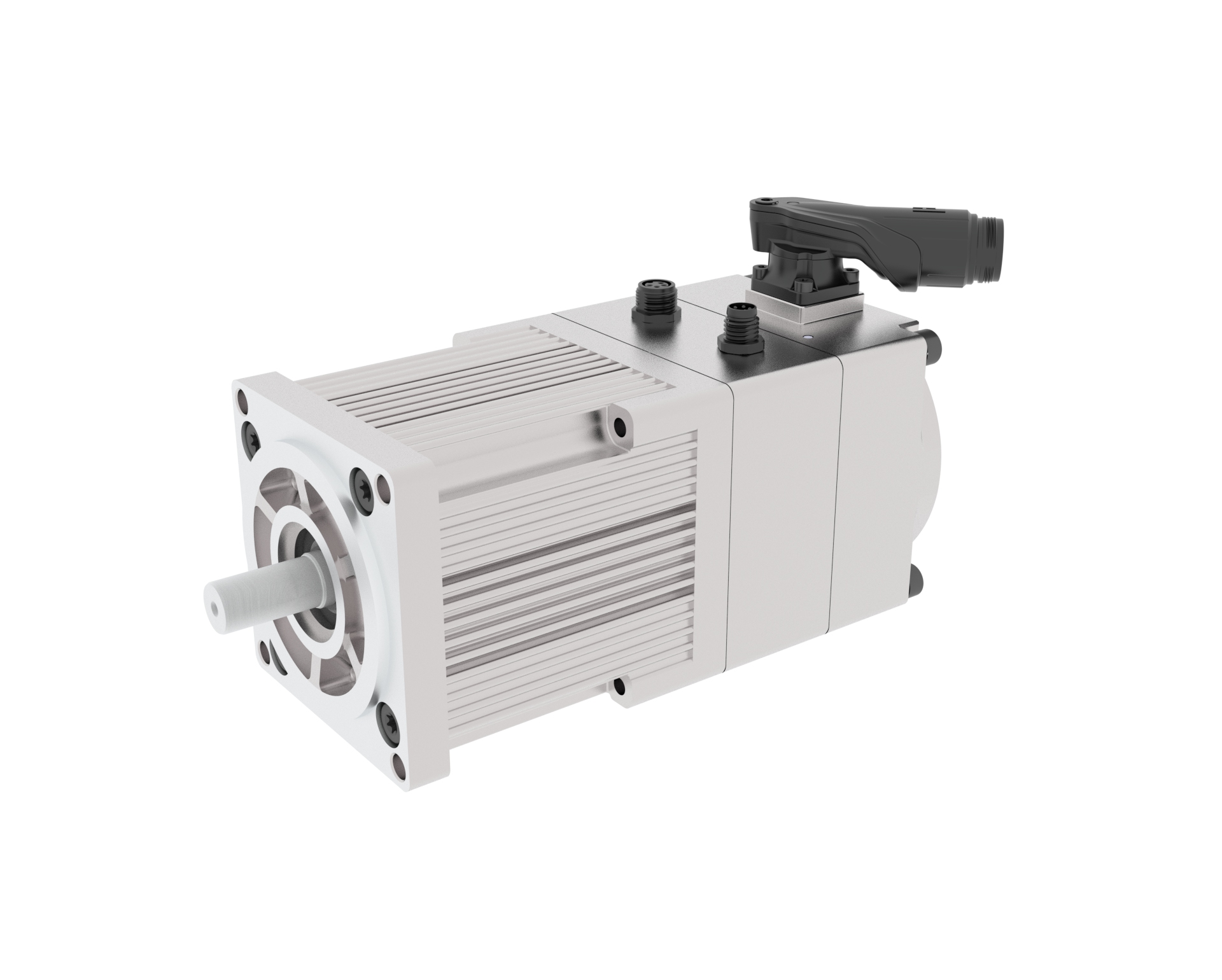

BL62 Drive |
|
|
|
|
|
Compact drive |
|
| Input voltage | Nominal speed (S2) | Nominal torque (S2) | Nominal mechanical power (S2) | Efficiency | Nominal phase current | S2 duty cycle | * Nominal outside diameter | * Nominal stator length| |
48 VDC 3000 RPM 2,5 Nmm 780 W > 85 % up to 20 Arms up to 10 minutes 62 mm 50 mm |

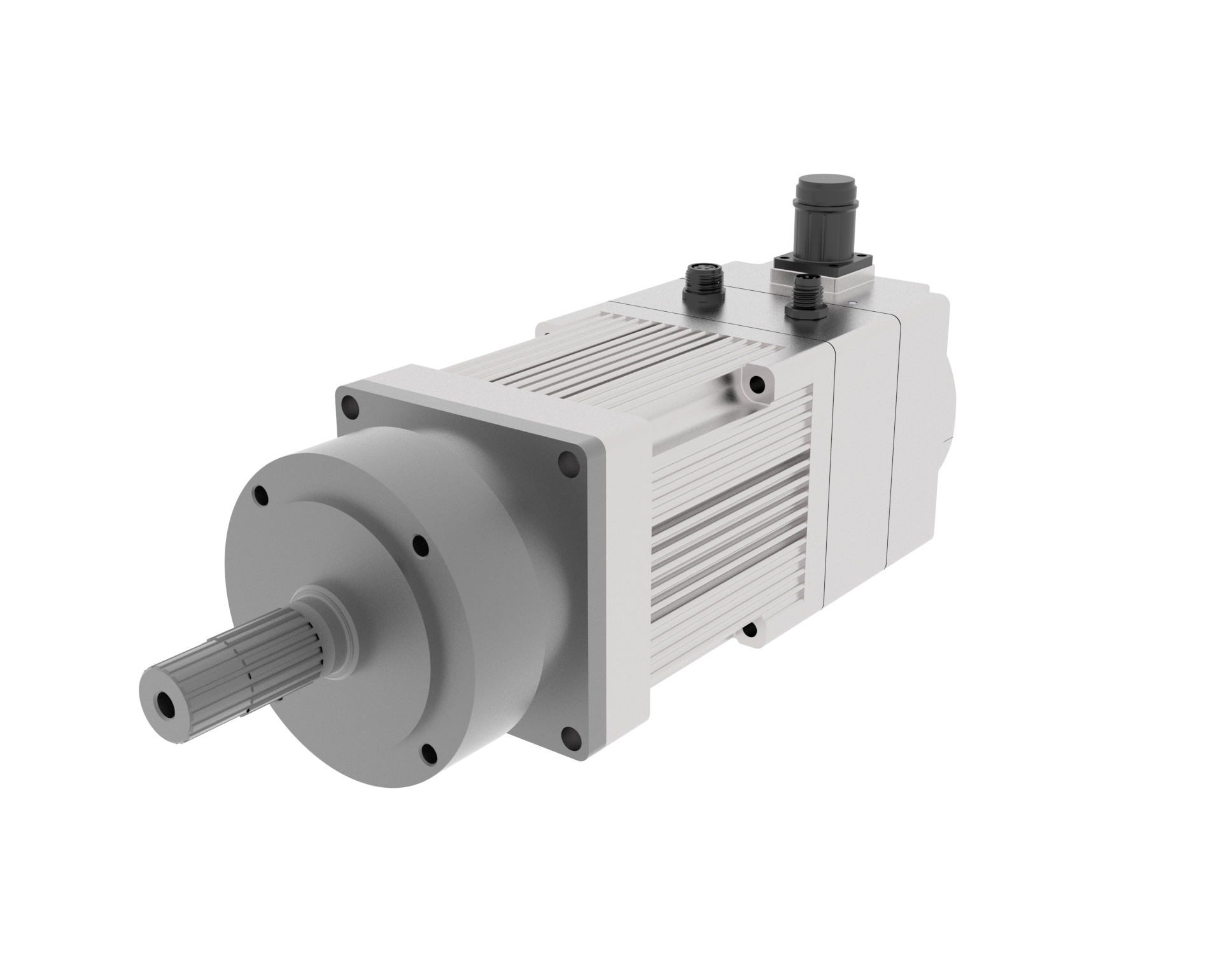

BL62 Gear Drive |
|
|
|
|
|
Compact geared drive |
|
| Input voltage | Nominal speed (S2) | Nominal torque (S2) | Nominal mechanical power (S2) | Efficiency | Nominal phase current | S2 duty cycle | * Nominal outside diameter | * Nominal stator length| |
48 VDC 600 RPM 12 Nmm 750 W > 85 % up to 20 Arms up to 10 minutes 62 mm 50 mm |

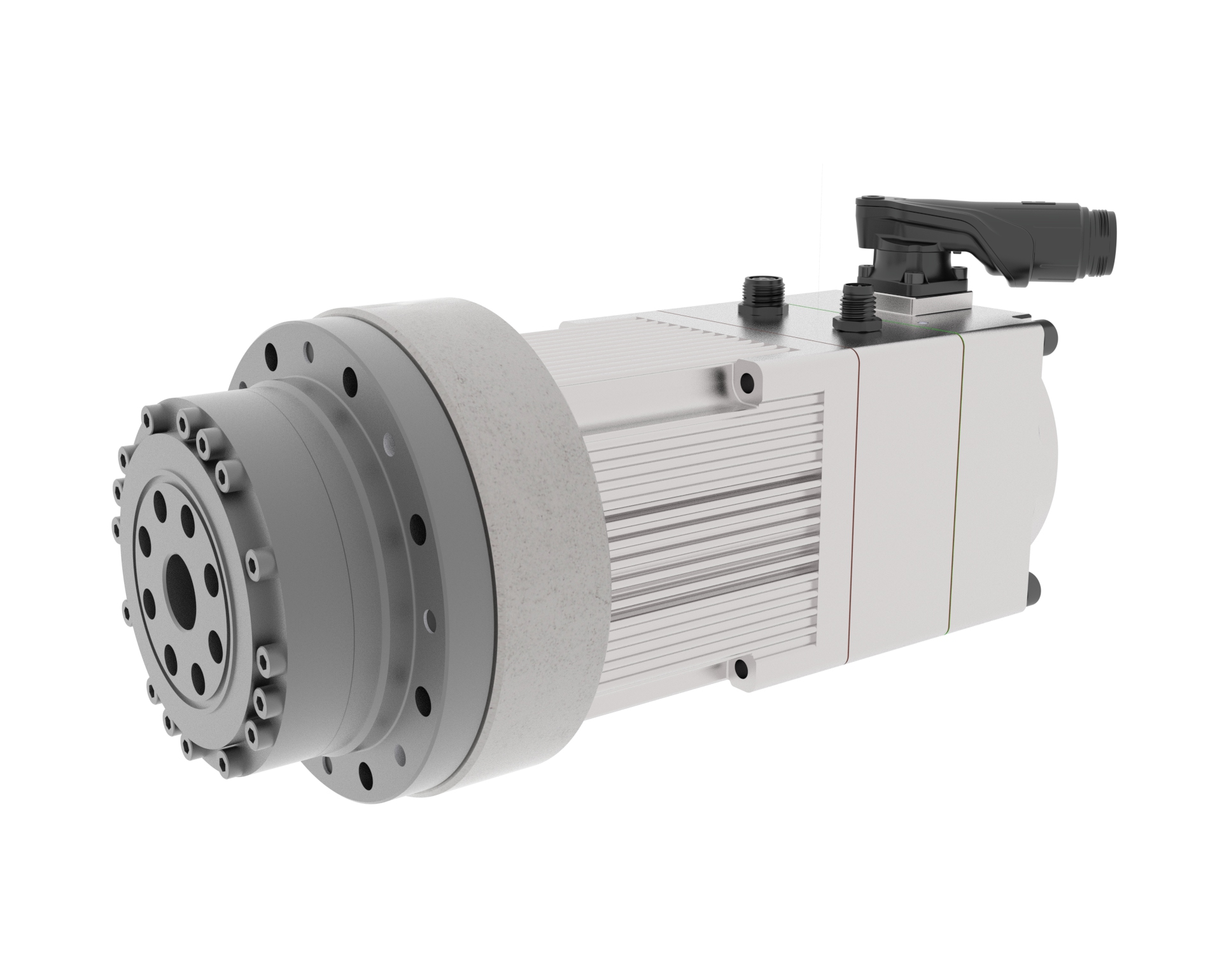

BL62 StrainWaive |
|
|
|
|
|
Ready for robotic systems |
|
| Input voltage | Nominal speed (S2) | Nominal torque (S2) | Nominal mechanical power (S2) | Efficiency | Nominal phase current | S2 Duty Cycle | * Nominal outside diameter | * Nominal stator length| |
48 VDC up to 40 RPM up to 80 Nmm up to 800 W > 80 % 20 Arms up to 10 min 62 mm 50 mm |

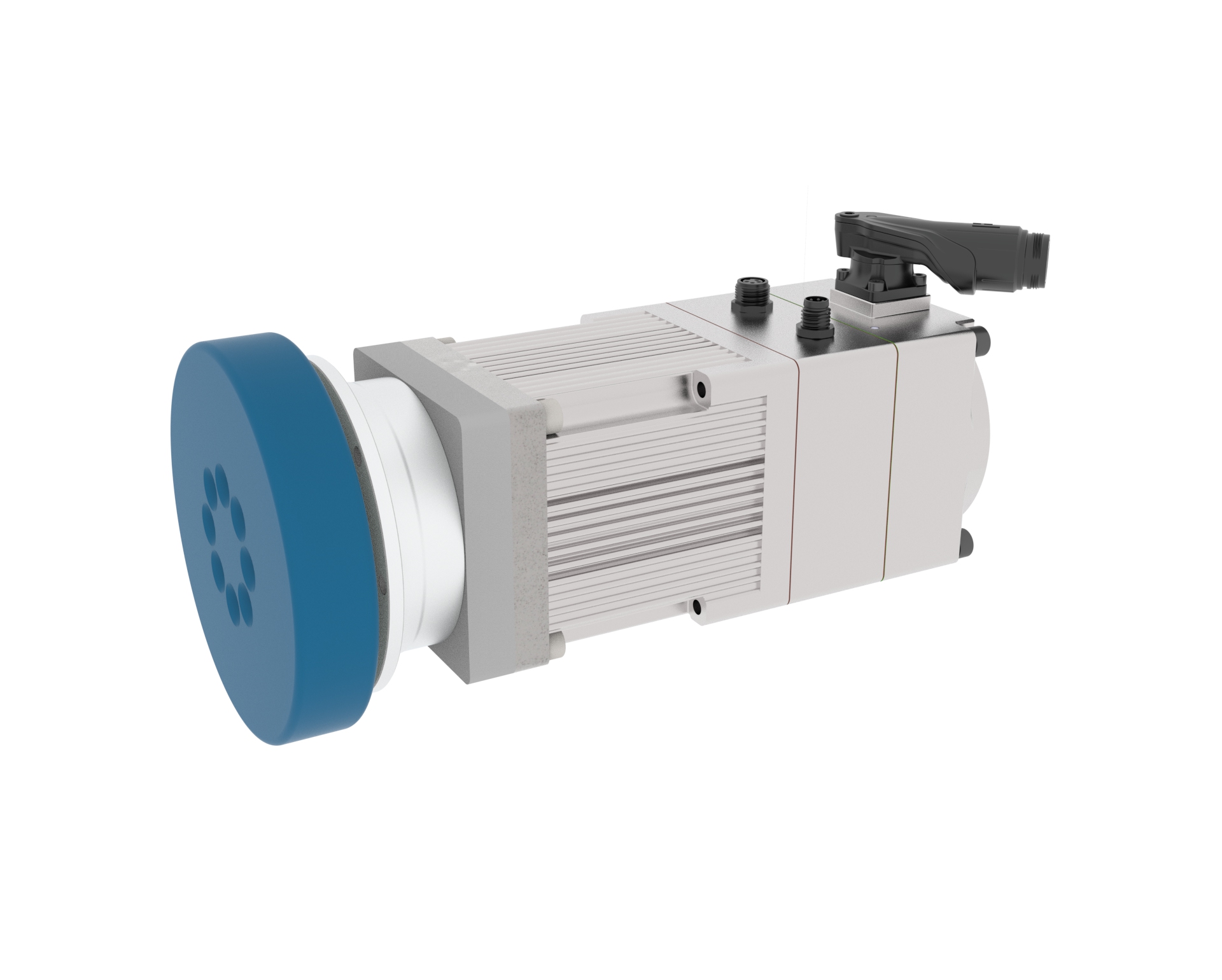

BL62 Traction |
|
|
|
|
|
Traction geared drive |
|
| Input voltage | Nominal speed (S2) | Nominal torque (S2) | Nominal mechanical power | Efficiency | Nominal phase current | Duty cycle (S2) | * Nominal outside diameter | * Nominal stator length| |
48 VDC up to 200 RPM up to 35 Nmm 730 W > 85 % 20 Arms up to 10 minutes 62 mm 50 mm |
