Permanent Magnet Brushless Drives

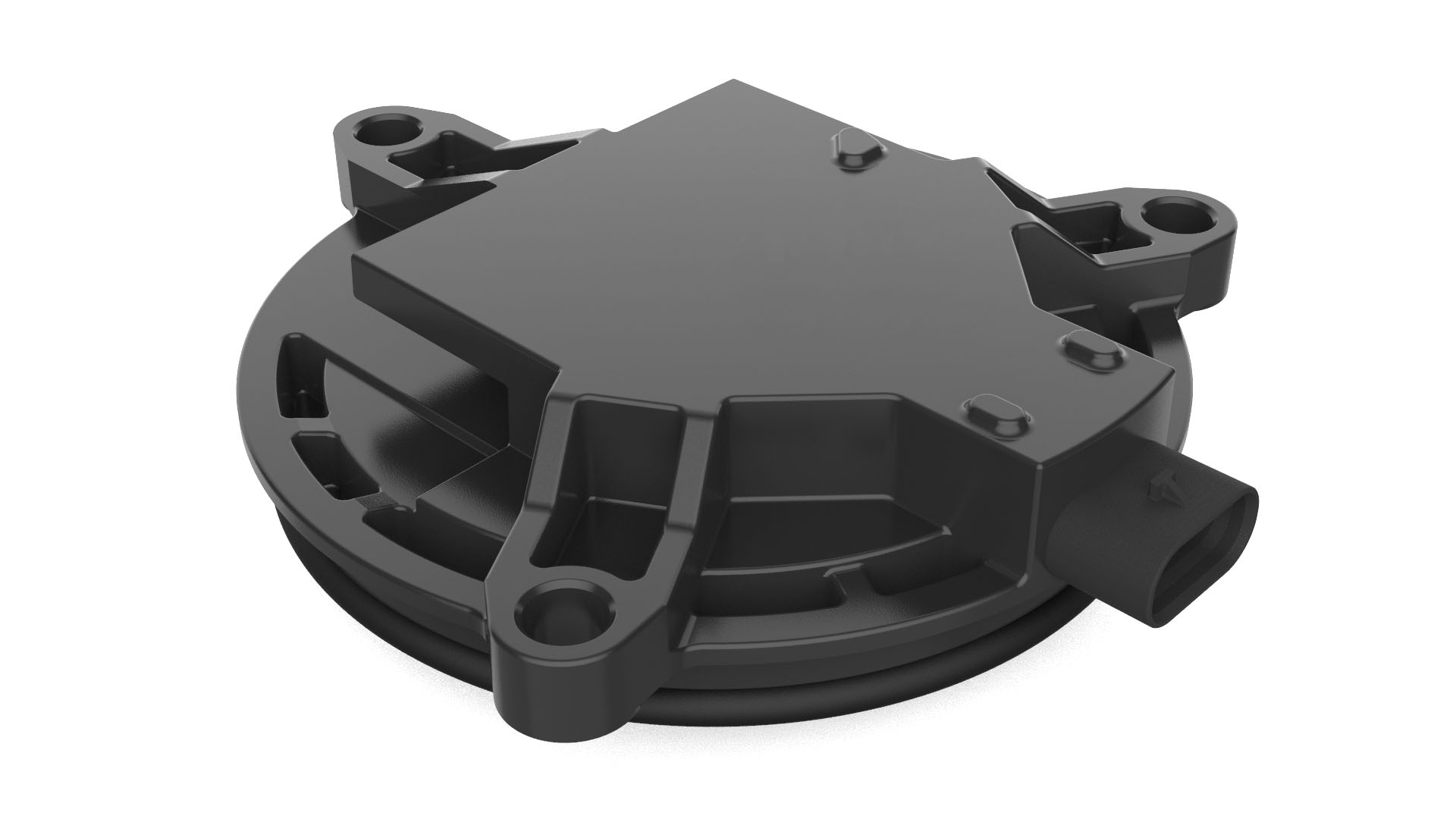

BL50

High RPM Drive
Efficient BLDC drive with integrated control
gas&media tight electronics
Input voltage |
Nominal speed |
Nominal torque |
Nominal mechanical power |
MC communication |
SW development standards |		 9,5 - 16 VDC
up to 16 000 RPM
up to 0,035
58 W
LIN
ASPICE Level 2

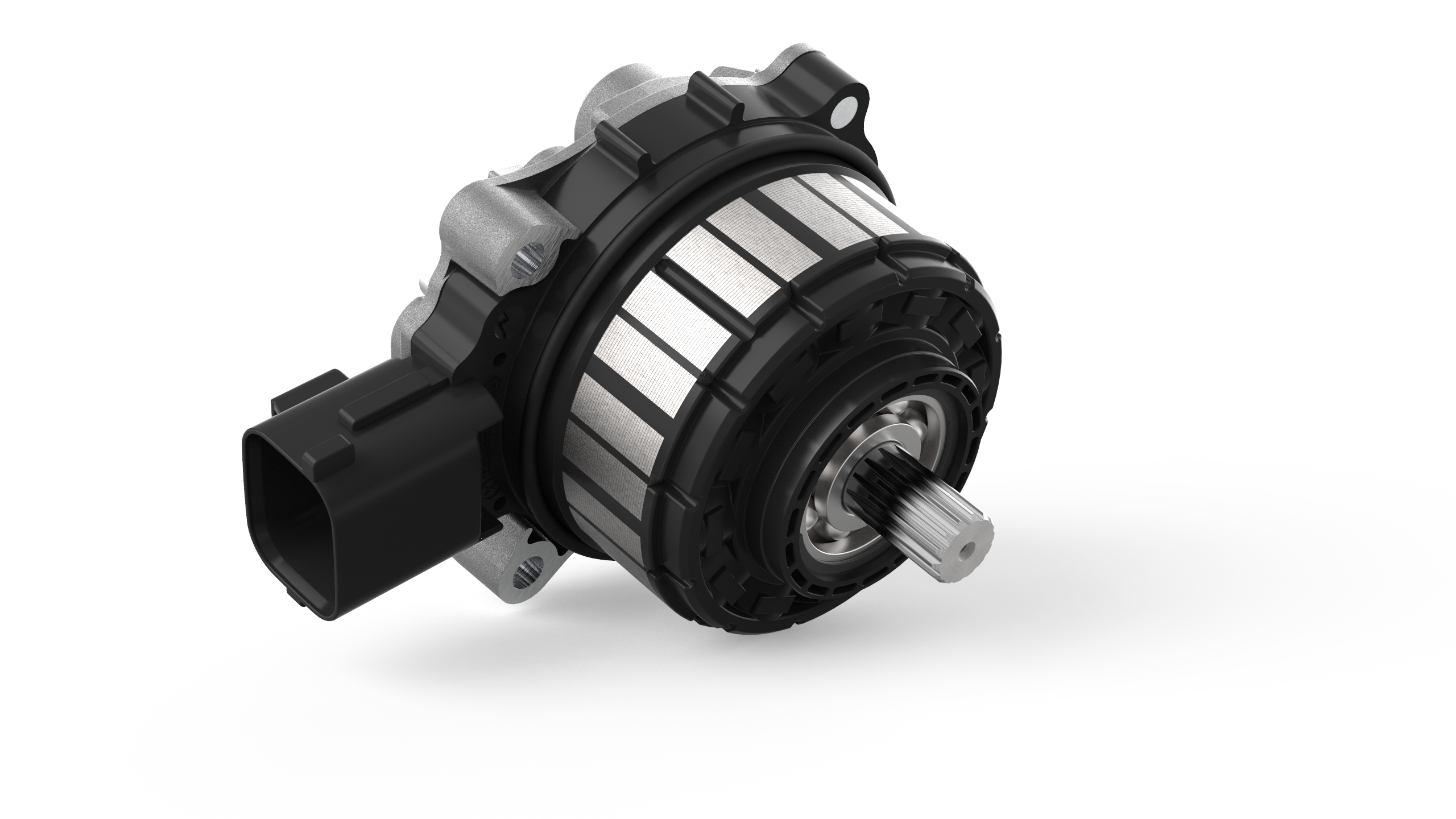

BL67

Smart Actuator / Electric Drive
Compact design
gas&media tight electronics
Input voltage |
Nominal speed |
Nominal torque |
Nominal mechanical power |
MC communication |
SW development standards |		 9,5 - 16 VDC
up to 2400 RPM
up to 0,6 Nm
up to 150 W
CAN
ASPICE Level 2

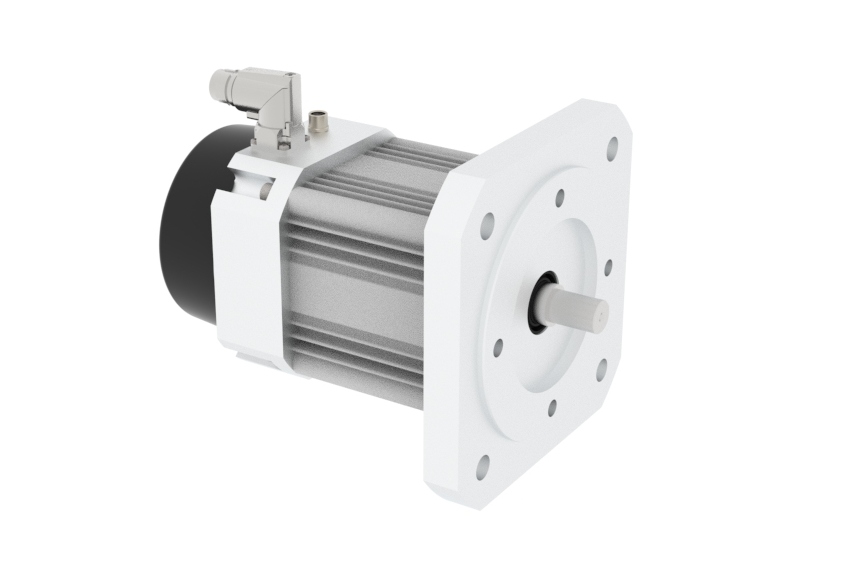

BL90

Compact Electric Drive for electrification
Lightweight & Compact
High efficiency
Input voltage |
Nominal speed |
Nominal torque |
Nominal mechanical power |
MC communication |		 24-48 VDC
up to 3000 RPM
various
up to 1500 W
CAN

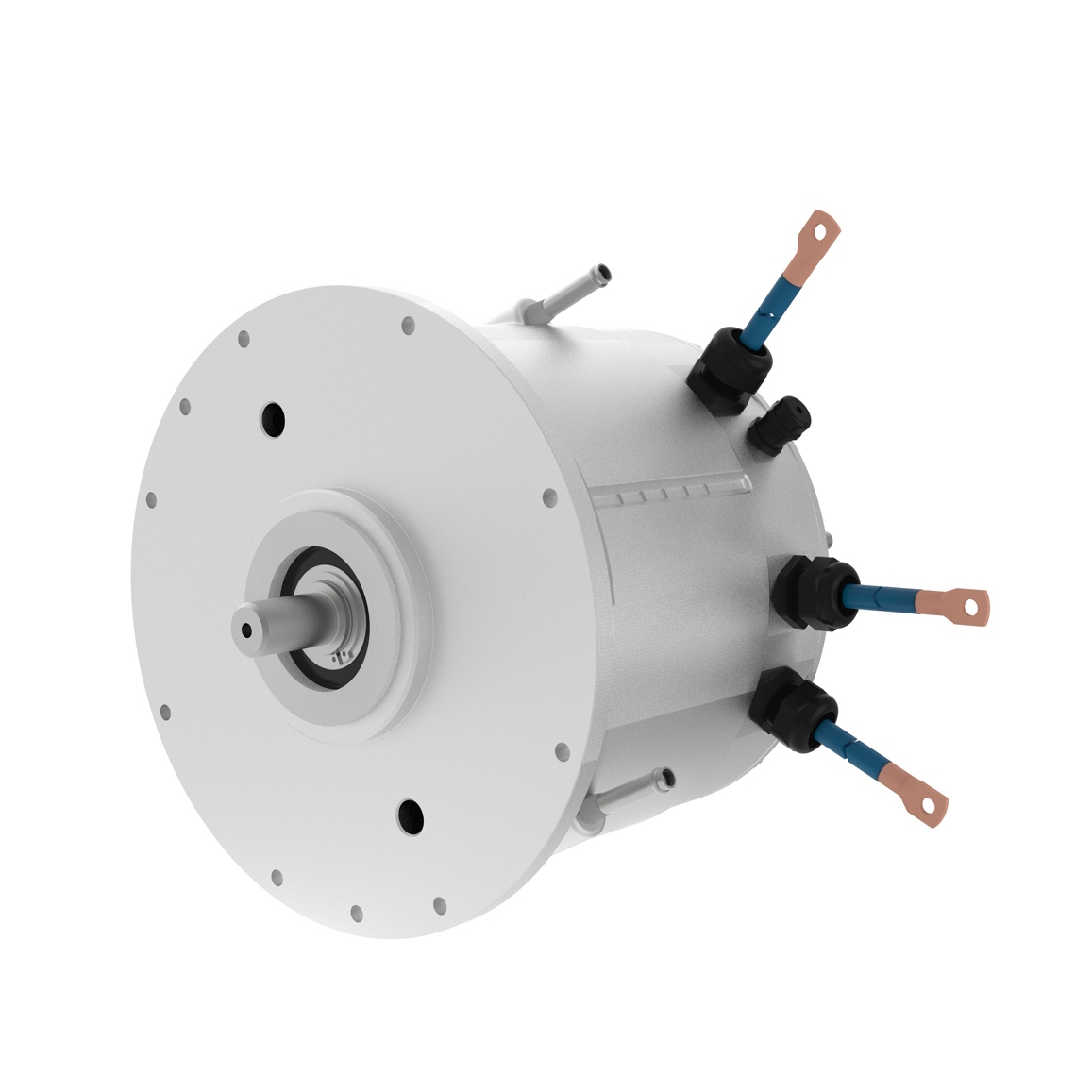

BL230

Traction Electric Drive
Liquid cooled winding
High efficiency
Input voltage |
Nominal speed |
Nominal torque |
Nominal mechanical power |
MC communication |		 400 VDC
2800 RPM
120 Nm
52000 W
CAN J1939

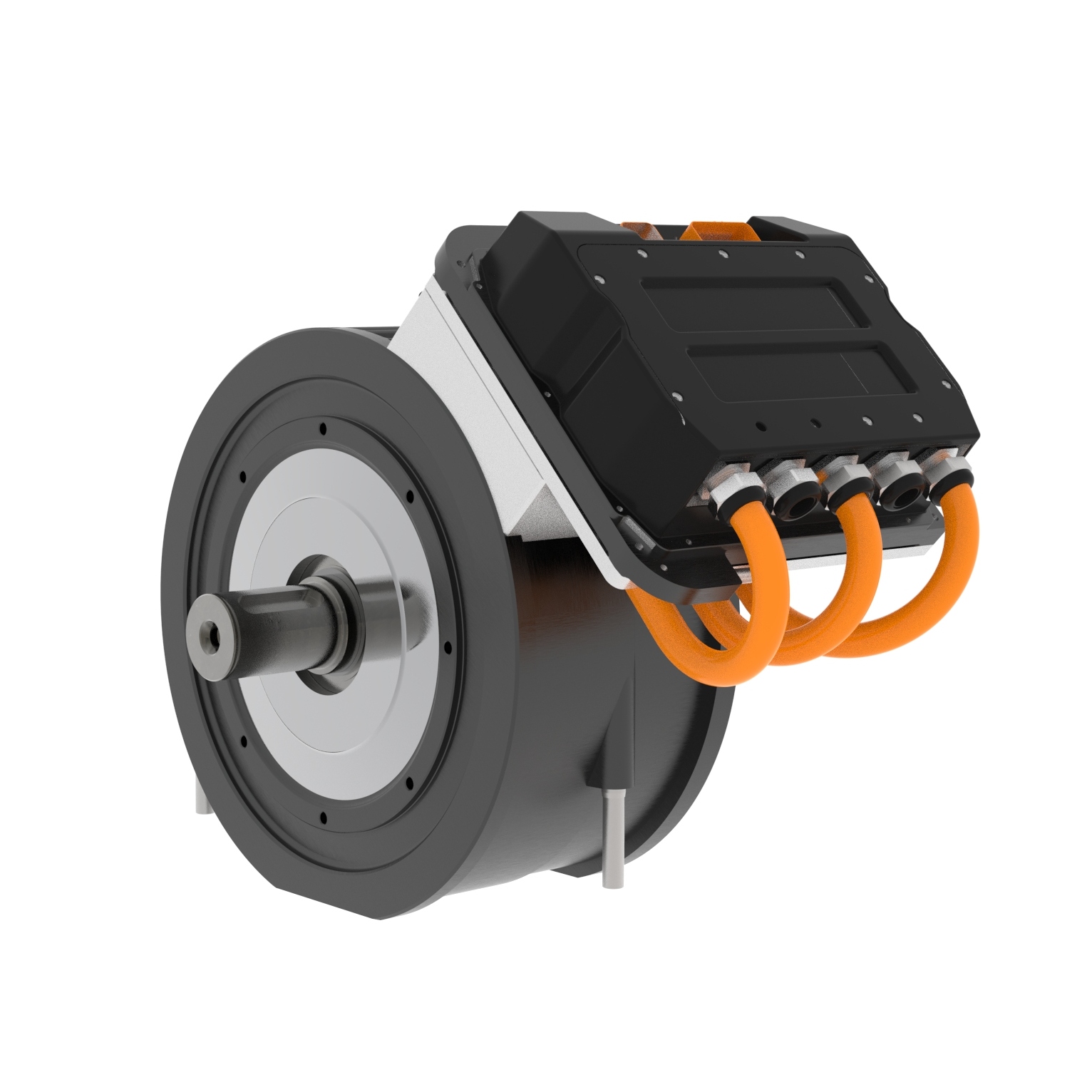

BL350

Traction Electric Drive & Generator
Low voltage - High current solution
Battery charging mode up to 400A
Input voltage |
Nominal speed |
Nominal torque |
Nominal mechanical power |
MC communication |
SW development standards |		 60 VDC
1600 RPM
150 Nm
25500 W
CAN J1939
n/a
Motor Group   Nominal DC voltage [V] Nominal supply DC current [A] Nominal torque [Nm] Nominal speed [RPM] Nominal mechanical power [W] Peak (max) torque (S2) Peak mechanical power [W] Motor Controller comm. protocol Weight Overall outer diameter
[mm]		 Overall length
[mm]
BL50   12 6 up to 0,035  up to 16000  58  upcoming  upcoming   LIN
BL67   12  22  up to 0,6  up to 2400  up to 150  1 (1 sec)  up to 210  CAN
BL90   48  30-43  1 - 12  1300-1400  950-1700  upcoming  upcoming   CAN
BL230   400  142  120  2800  52000  upcoming   upcoming   CAN J1939
BL350   60  500  150  1600  25500  upcoming    upcoming   CAN J1939
